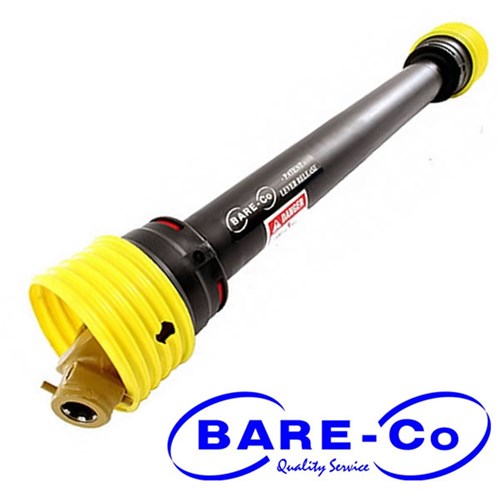

PTO Driveshaft 750mm 16HP – AB1075
Series 1 PTO Driveshaft – 750mm Closed Length
Features
- Genuine Bare-Co PTO driveshaft
- Series 1 driveline
- Closed length: 750mm (30″)
- Extends to 1100mm (43″)
- 1-3/8″ x 6 spline quick-release yokes at both ends
- Patented Bare-Co quick-release safety guard
- Heavy-duty triangular profile drive tube
- Easy access for greasing and maintenance
- Smooth, efficient power transfer
- Built for long service life
Description
PTO Driveshaft Series 1 750mm 16HP
Closed length: 750mm -Cross to Cross (940mm Overall)
Open Length: 1100mm -Cross to Cross (1270mm Overall)Yoke size 22×54
12kw – 16hp @ 540rpm (or 19kw – 26hp @ 1000rpm)The most user friendly PTO Driveshaft in the world
> BareCo’s Patent Quick Release lever system allows the guard to be quickly pulled back to facilitate Safe, simple and easy greasing of joints or engagement of end yokes.
Suitable For
The Bare-Co AB1075 is suitable for many compact and utility tractors fitted with a standard 540 RPM PTO and is commonly used with:
- Slashers
- Finish mowers
- Rotary cutters
- Fertiliser spreaders
- Post hole diggers
- Rotary hoes
- Seeders
- Small agricultural implements
Always measure your existing PTO shaft before ordering to ensure the correct operating length.
Why Buy from Agline?
Agline is a New Zealand family-owned agricultural parts supplier with practical farming and machinery experience. We stock genuine Bare-Co PTO shafts and quality replacement tractor parts, backed by knowledgeable advice and fast nationwide delivery.
Specifications
- Part Number: AB1075
- Brand: Bare-Co
- Series: 1
- Closed Length (Cross to Cross): 750mm
- Open Length (Cross to Cross): 1100mm
- Overall Length: 940mm – 1270mm
- Universal Joint Size: 22 × 54mm
- Tractor End: 1-3/8" × 6 Spline Quick Release
- Implement End: 1-3/8" × 6 Spline Quick Release
- Power Rating: 12kW (16HP) @ 540 RPM
- Power Rating: 19kW (26HP) @ 1000 RPM
- Includes: Complete PTO driveshaft with rotating safety guard
Suitable For
The Bare-Co AB1075 is suitable for many compact and utility tractors fitted with a standard 540 RPM PTO and is commonly used with:
- Slashers
- Finish mowers
- Rotary cutters
- Fertiliser spreaders
- Post hole diggers
- Rotary hoes
- Seeders
- Small agricultural implements
Always measure your existing PTO shaft before ordering to ensure the correct operating length.
Why Buy from Agline?
Agline is a New Zealand family-owned agricultural parts supplier with practical farming and machinery experience. We stock genuine Bare-Co PTO shafts and quality replacement tractor parts, backed by knowledgeable advice and fast nationwide delivery.
If you're unsure which PTO shaft best suits your tractor or implement, we're happy to help.
Additional information
| Weight | 7.25 kg |
|---|
